I recently finished a presentation for my networking class that designs a system for a small 150 emp company that showcases the router/ switch configurations and concepts that we are learning for the CCENT examination that I plan to take this summer. The system I designed and implemented on a Packet Tracer project features a number of functionalities:
- VLSM for IPV4 network 192.168.0.0/16
- IPv6 network addressing
- DHCP
- NAT
- 14 VLANs, trunking and router on a stick
- Dynamic port security including violation mode restrict, max addr 2 and sticky mac address
- SSH version 2 on VTY lines with restricted management access
- ACL access restriction to EXEC and ACCT pcs
- DNS, TFTP, FTP, Syslog and HTTP services
- Floating Static Route
- Dynamic RIPv2 and RIPng
- ———————————-

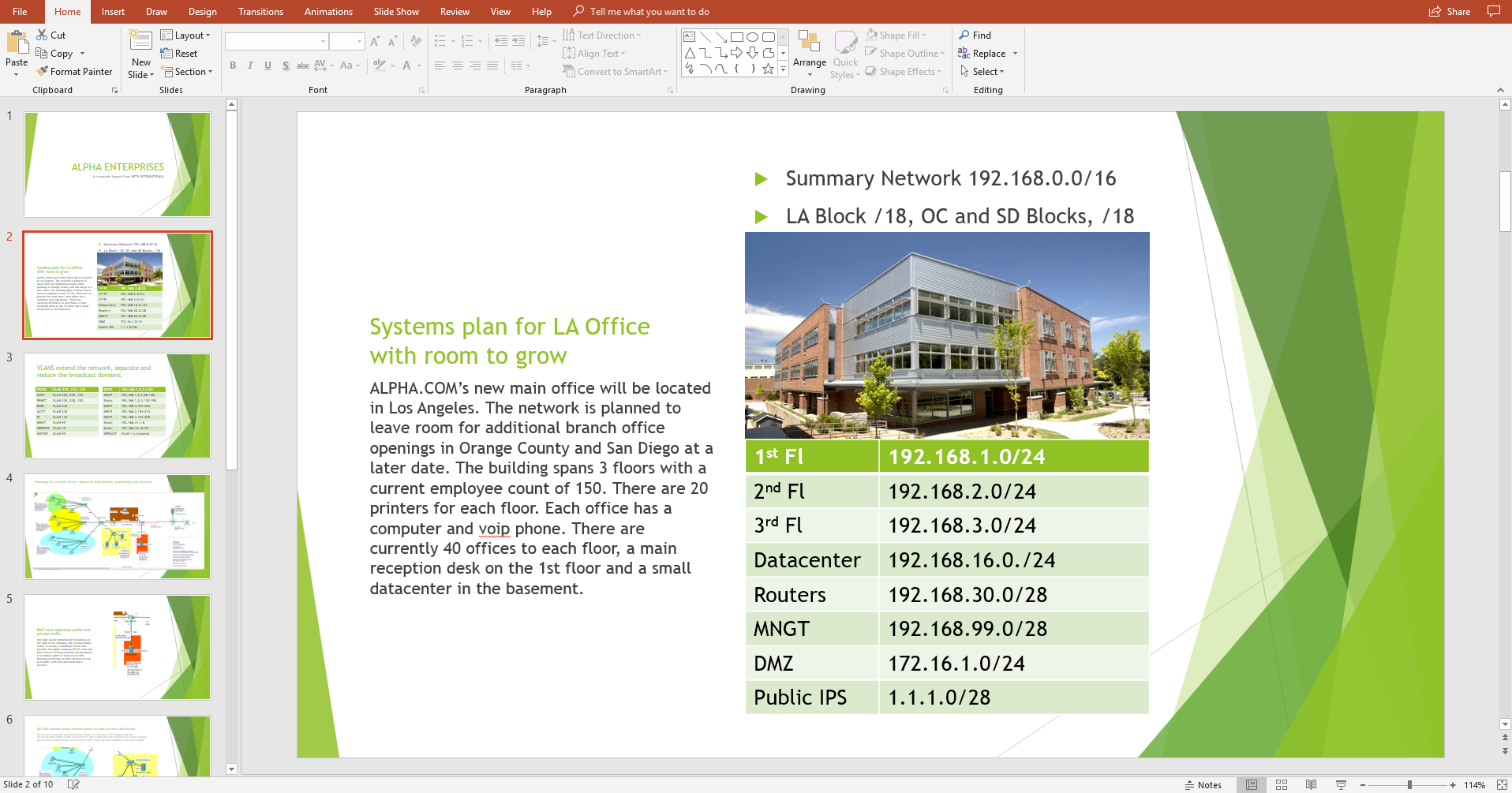

Please feel free to check out my packet tracer file and power point presentation that demonstrates and outlines my design. The text file will provide the tests that I recommend you run to verify the functionalities listed above.
